Franz Binder

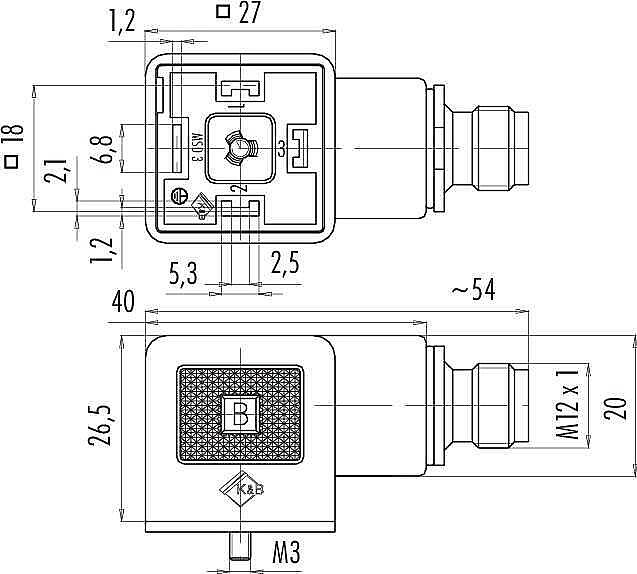

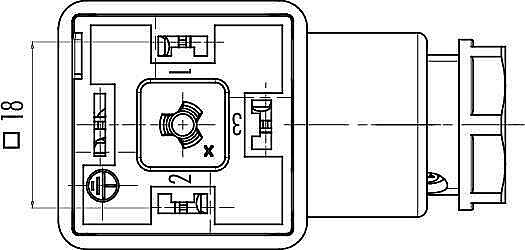

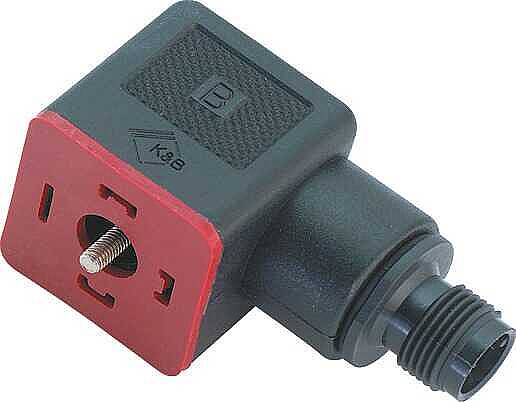

Size A adapter, Contacts: 3+PE, not shielded, pluggable, IP65

Product Code : 99 5702 00 04
Stok Durumu : 0
Birim : Adet
Franz Binder
936.68 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%34
100 - 9999
%50
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 5702 00 04

    M18, series 210, Automation technology - solenoid valve connectors

    Features
    Degree of Protection
    :
    IP65
    Number of Poles
    :
    3 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    60 V
    Rated Current
    :
    4 A
    Cross Section (mm²)
    :
    0.34
    Cross Section (Awg)
    :
    22
    Lower Limit Temperature (°C)
    :
    -30
    Upper Limit Temperature (°C)
    :
    85
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Ni (Nickel)
    Housing Material
    :
    PA (Polyamide)
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    800 V
    Test Voltage
    :
    4800 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    II
    Volume Resistance
    :
    ≤ 15 mΩ
    EMC Suitability
    :
    No
