Franz Binder

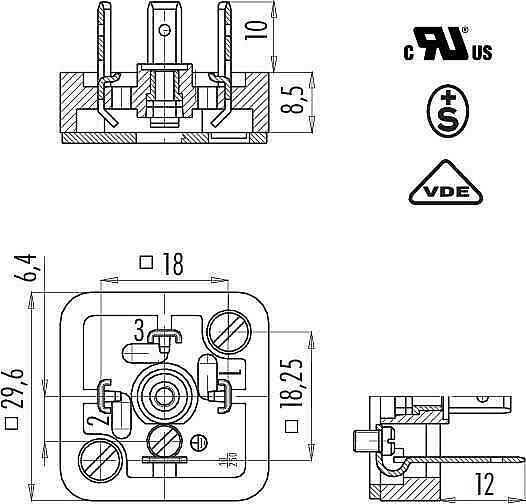

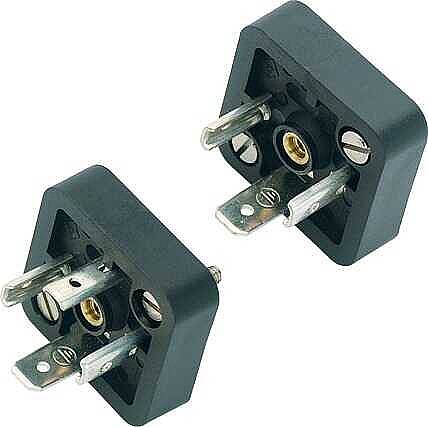

Size A male connector (panel mount), Contacts: 2+PE, not shielded, solder, IP40 without seal, UL, ESTI+, VDE

Product Code : 43 1709 000 03
Stok Durumu : 0
Birim : Adet
Franz Binder
70.72 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%38
100 - 9999
%50
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 43 1709 000 03

    M18, series 210, Automation technology - solenoid valve connectors

    Features
    Connector Type
    :
    Receptacle
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP40
    Number of Poles
    :
    2 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    10 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    1.00
    Cross Section (Awg)
    :
    17
    Angled
    :
    No
    Flange
    :
    No
    Mounting Side
    :
    Arkadan
    Lower Limit Temperature (°C)
    :
    -20
    Upper Limit Temperature (°C)
    :
    100
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Sn (Tin)
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    4000 V
    Test Voltage
    :
    4800 V
    Overvoltage Category
    :
    III
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 15 mΩ
    EMC Suitability
    :
    No
