Allied Connectors

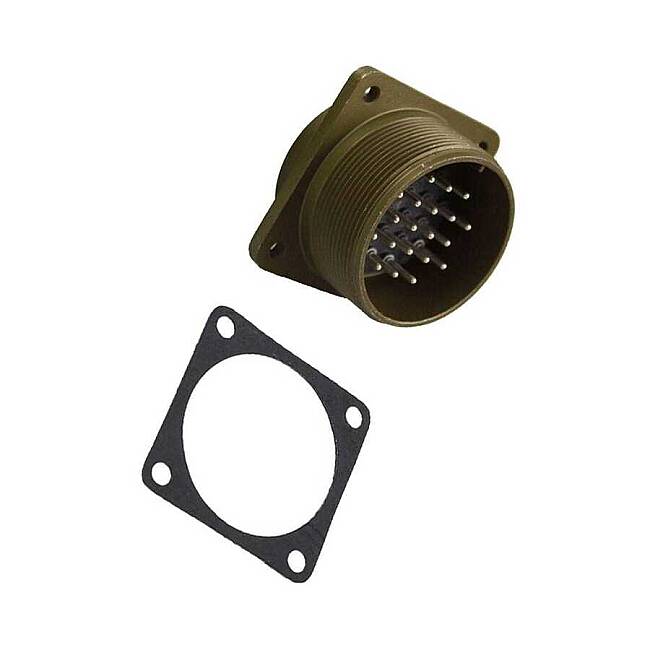

4 Contact Receptacle 180° Straigth Male Military Connector (MIL-DTL-5015)

Product Code : MS 3102R 22-22P SQG A30
Stok Durumu : 2
Birim : Adet
Allied Connectors
970.63 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 9
%0
10 - 24
%15
25 - 49
%27
50 - 99
%39
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • MS 3102R 22-22P SQG A30

    MS series military type connector which is produced by Allied Connectors in MIL-DTL-5015 standards has shell size 22 Crimp (Turned) type 4 contacts Male. It's Receptacle and 180° Straigth cable outlet. It has 22-22 insert arrangement. With it's Green body color and Cadmium body coating. It's operating voltage is 700 VDC / 500 VAC and current carrying capacity is 46 A, which can operate at temperatures between -55 and 125 degrees.

    Features
    Series
    :
    MS
    Connector Type
    :
    Receptacle

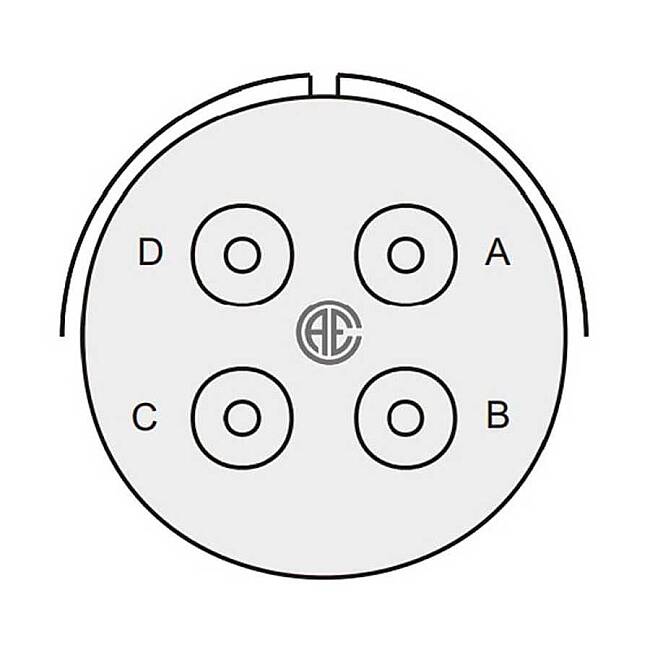

    Insert Arrangement
    :
    22-22
    Connector Lock
    :
    Threaded
    Contact Type
    :
    Male
    Number of Poles
    :
    4
    Contacts Supplied
    :
    Yes
    Shell Size
    :
    22
    Rated Voltage
    :
    700 VDC / 500 VAC
    Rated Current
    :
    46 A
    Termination Type
    :
    Crimp (Turned)
    Cross Section (mm²)
    :
    8.00
    Cross Section (Awg)
    :
    8
    Angle
    :
    180° (Straigth)
    Flange
    :
    Yes
    Mounting Side
    :
    Önden
    Lower Limit Temperature (°C)
    :
    -55
    Upper Limit Temperature (°C)
    :
    125
    Cable Outlet
    :
    8.90 - 18.50 mm
    Contact Material
    :
    Cu (Copper)
    Contact Surface
    :
    Ag (Silver)
    Housing Material
    :
    Aluminum
    Housing Color
    :
    Green
    Mechanical Life
    :
    > 500
    Standards
    :
    MIL-DTL-5015
    Gasket
    :
    With
    Housing Coating
    :
    Cadmium
    Telescoping Bushing
    :
    Without
    Cable Clamp
    :
    Without
    Cap
    :
    Without
