Allied Connectors

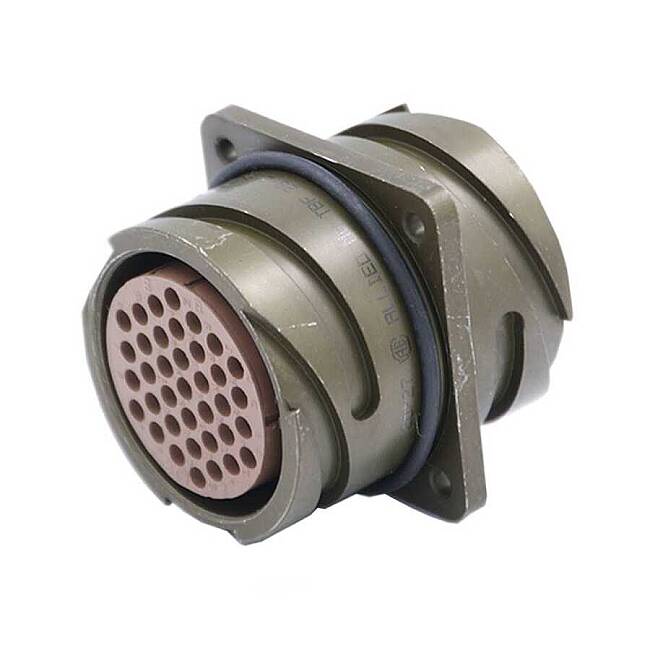

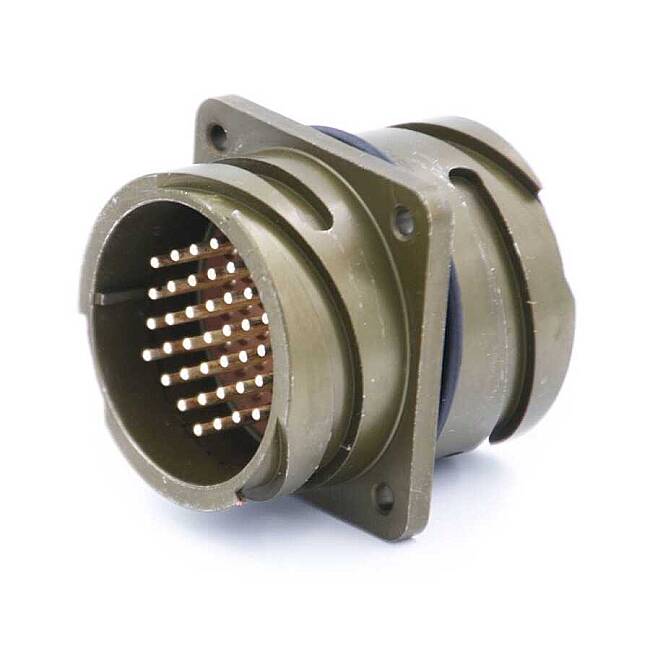

37 Contact Female / Male Bayonet Bulkhead

Product Code : MG TBF 28-21PS
Stok Durumu : 10+
Birim : Adet
Allied Connectors
11,112.37 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 9
%0
10 - 24
%15
25 - 49
%27
50 - 99
%39
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • MG TBF 28-21PS

    The bulkhead, which is produced by Allied Connectors in VG 95234 standards has shell size 28, 37 contacts Female / Male and 28-21 insert arragement. With it's Green body color and Kadmiyum body coating. It's operating voltage is 700 VDC / 500 VAC and current carrying capacity is 13 A, which can operate at temperatures between -55 and 125 degrees.

    Features
    Connector Type
    :
    Receptacle

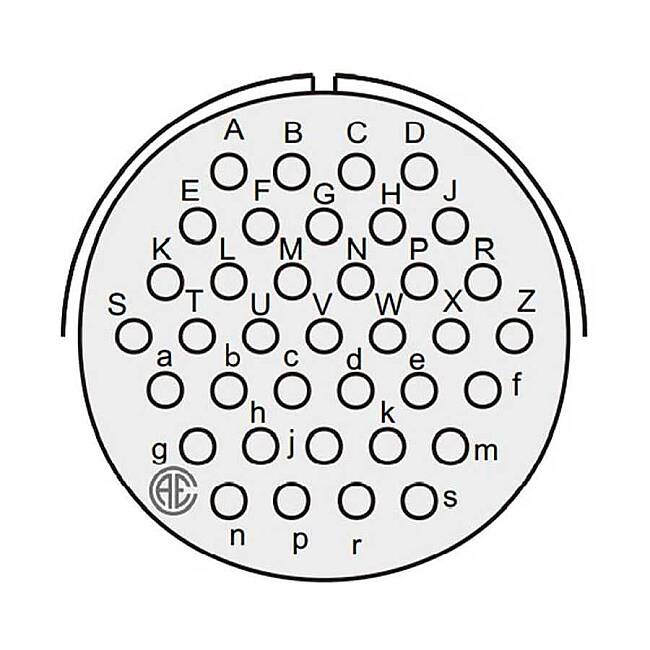

    Insert Arrangement
    :
    28-21
    Connector Lock
    :
    Bayonet
    Contact Type
    :
    Female / Male
    Number of Poles
    :
    37

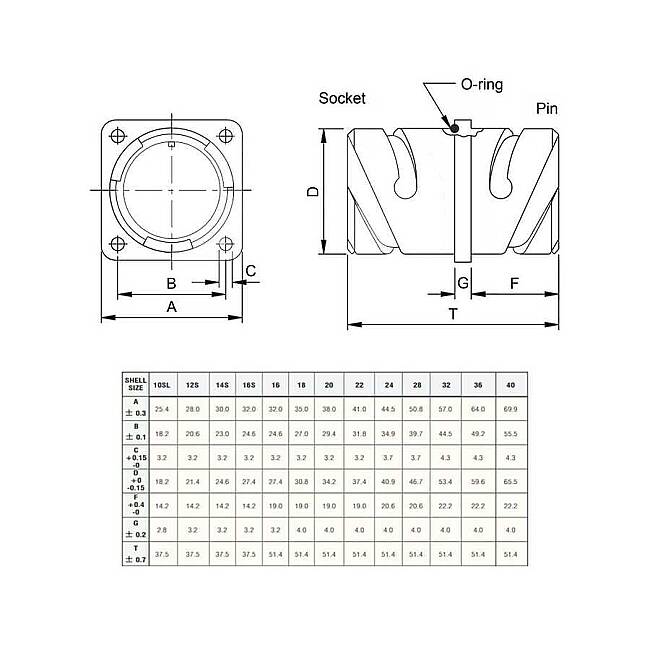

    Shell Size
    :
    28
    Rated Voltage
    :
    700 VDC / 500 VAC
    Rated Current
    :
    13 A
    Lower Limit Temperature (°C)
    :
    -55
    Upper Limit Temperature (°C)
    :
    125
    Contact Material
    :
    Cu (Copper)
    Contact Surface
    :
    Ag (Silver)
    Housing Material
    :
    Aluminum
    Housing Color
    :
    Green
    Mechanical Life
    :
    > 500
    Standards
    :
    VG 95234
    Gasket
    :
    Without
    Cap
    :
    Without
    Housing Coating
    :
    Cadmium
