Intecno

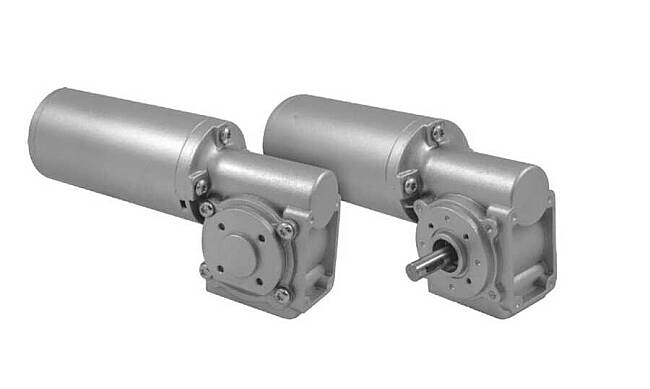

DC Motor With Worm Gearbox and Encoder

Product Code : KCM031-DC63X125
Stok Durumu : 5
Birim : Adet
Intecno
5,269.60 TL + VAT
3,952.20 TL + VAT
0 Yorum | Add Comment
Your Catch
:
1,580.88 TL
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • DC Motor With Worm Gearbox and Encoder

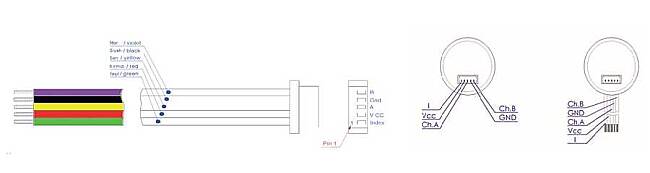

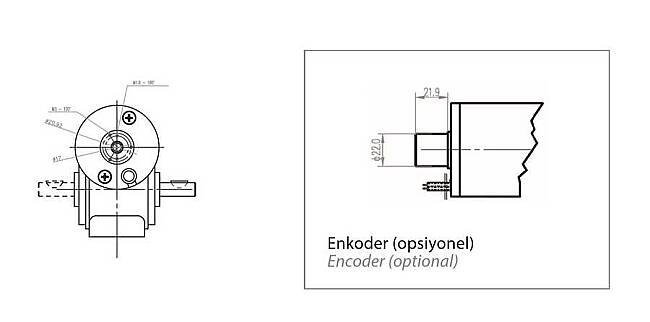

    It can be used in many applications, especially automatic doors. The ratio is 1:15. Includes 100 CPR 2 channel encoder.

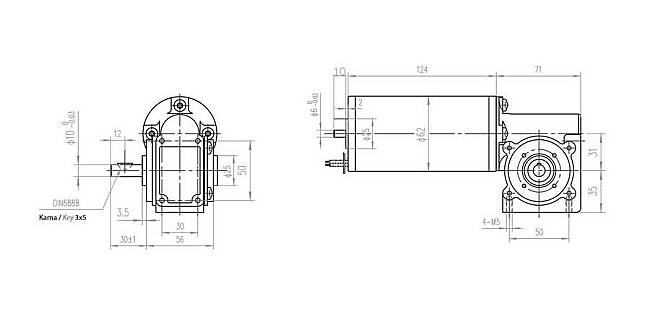

    All technical details of the motor, gearbox and encoder are available in the Document.

    Weight (Kg)
    :
    1.9
    Features
    Degree of Protection
    :
    IP40
    Rated Voltage
    :
    24 VDC
    Rated Current
    :
    5.80 A
    Output Speed
    :
    200 rpm
    Ratio
    :
    1:15
    Rated Torque
    :
    3.5 Nm
    Tags
    dc motor , redüktörlü dc motor , enkoderli dc motor
