Out of stock
TE Connectivity - Intercontec

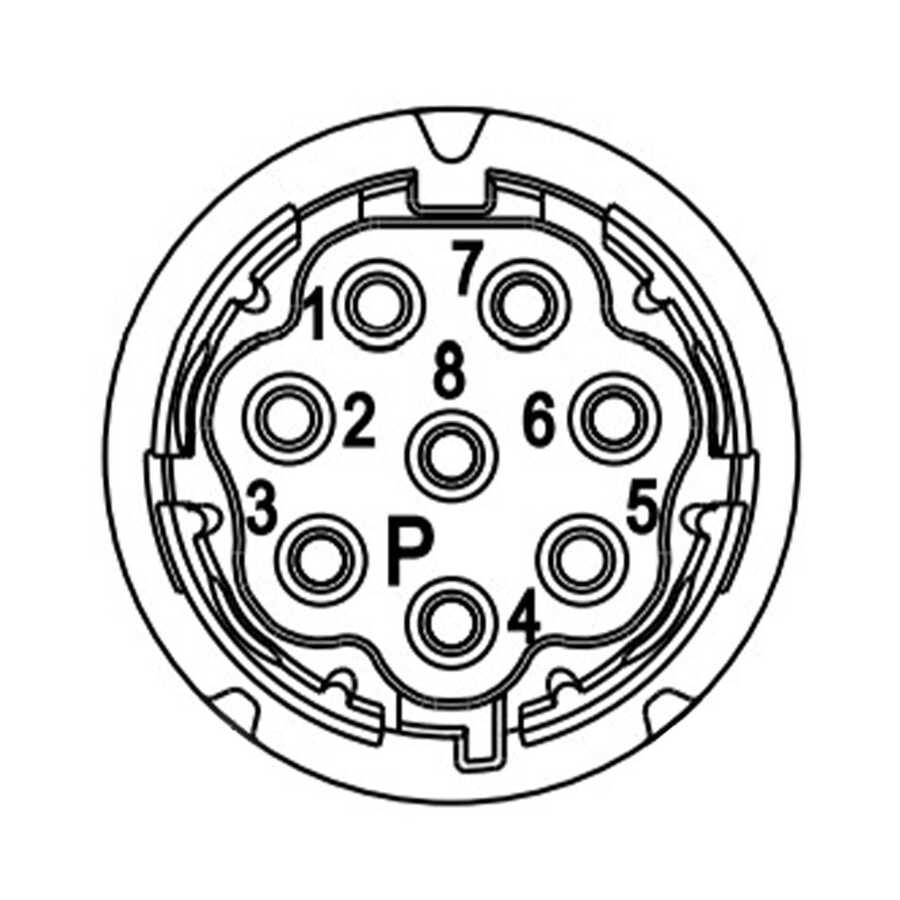

8 Contact Receptacle Male P Coding 180° Connector

Product Code : C33A150NN00000102000
Stok Durumu : 0
Birim : Adet
TE Connectivity
1,546.35 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 4
%0
5 - 14
%20
15 - 24
%32
25 - 9999
%46
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • C33A150NN00000102000

    Intercontec 618 series connector which is produced by TE Connectivity has M18 shell size, 8 contacts, Male, P coding, Receptacle Flange and 180° cable outlet. It's operating voltage is 32 V and current carrying capacity is 5 A, which can operate at temperatures between -20 and 130 degrees. It's in the waterproof IP67 protection class.

    Features
    Series
    :
    618
    Connector Type
    :
    Receptacle
    Connector Lock
    :
    Bayonet
    Contact Type
    :
    Male
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    8
    Contacts Supplied
    :
    No
    Shell Size
    :
    M18
    Coding
    :
    P Coding
    Rated Voltage
    :
    32 V
    Rated Current
    :
    5 A
    Angle
    :
    180° (Straigth)
    Flange
    :
    Yes
    Lower Limit Temperature (°C)
    :
    -20
    Upper Limit Temperature (°C)
    :
    130
    Housing Material
    :
    Zinc
    Housing Color
    :
    Metallic
    Mechanical Life
    :
    > 500
    EMC Suitability
    :
    Yes
    Insert
    :
    With
    Flange Size
    :
    28.00 mm
    Housing Coating
    :
    Ni (Nickel)
