Allied Connectors

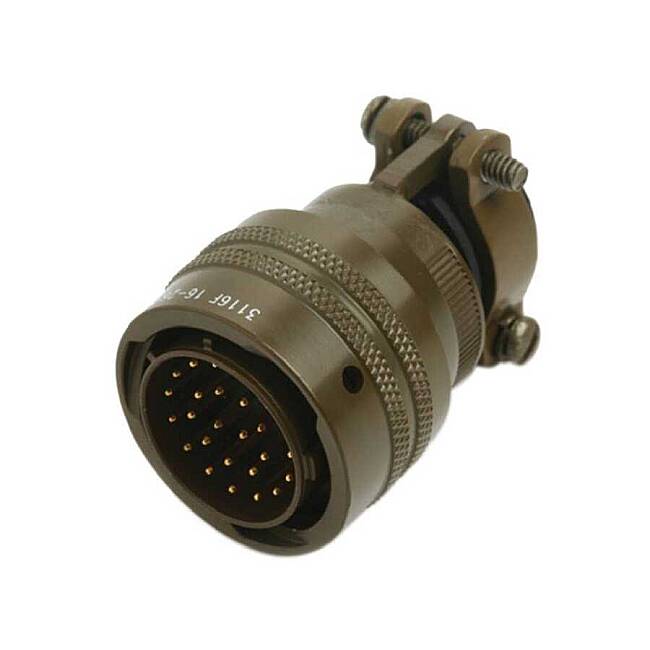

19 Contact Plug 180° Straigth Female Military Connector (MIL-DTL-26482 S1)

Product Code : BH 16F 14-19S
Stok Durumu : 10+
Birim : Adet
Allied Connectors
2,053.96 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 9
%0
10 - 24
%15
25 - 49
%27
50 - 99
%39
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Payment Options
  • Comments (0)
  • Recommend

  • BH 16F 14-19S

    BH series military type connector which is produced by Allied Connectors in MIL-DTL-26482 S1 standards has shell size 14 Solder type 19 contacts Female. It's Plug and 180° Straigth cable outlet. It has 14-19 insert arrangement. With it's Green body color and Cadmium body coating. It's operating voltage is 850 VDC / 600 VAC and current carrying capacity is 7.50 A, which can operate at temperatures between -55 and 125 degrees.

    Features
    Series
    :
    BH
    Connector Type
    :
    Plug

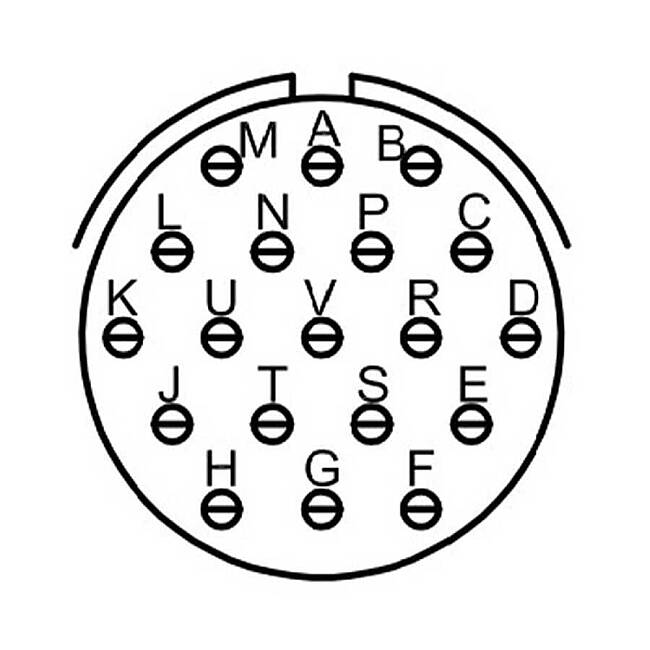

    Insert Arrangement
    :
    14-19
    Connector Lock
    :
    Bayonet
    Contact Type
    :
    Female
    Number of Poles
    :
    19
    Contacts Supplied
    :
    Yes
    Shell Size
    :
    14
    Rated Voltage
    :
    850 VDC / 600 VAC
    Rated Current
    :
    7.50 A
    Termination Type
    :
    Solder
    Cross Section (Awg)
    :
    24 - 20
    Angle
    :
    180° (Straigth)
    Flange
    :
    No
    Lower Limit Temperature (°C)
    :
    -55
    Upper Limit Temperature (°C)
    :
    125
    Cable Outlet
    :
    9.27 mm
    Contact Material
    :
    Cu (Copper)
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    Aluminum
    Housing Color
    :
    Green
    Mechanical Life
    :
    > 500
    Standards
    :
    MIL-DTL-26482 S1
    Gasket
    :
    Without
    Housing Coating
    :
    Cadmium
    Telescoping Bushing
    :
    Without
    Cable Clamp
    :
    With
    Cap
    :
    Without
