Franz Binder

RD24 female angled connector, Contacts: 3+PE, 6.0 - 8.0 mm, shielding is not possible, screw clamp, IP67, UL, ESTI+, VDE, PG9

Product Code : 99 4222 70 04
Stok Durumu : 8
Birim : Adet
Franz Binder
378.15 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%10
100 - 9999
%23
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 4222 70 04

    RD24, series 693, Power connectors

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67

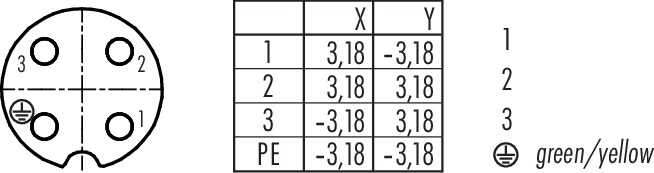

    Number of Poles
    :
    3 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    400 V
    Rated Current
    :
    16 A
    Termination Type
    :
    Screw
    Cross Section (mm²)
    :
    2.50
    Cross Section (Awg)
    :
    14
    Angled
    :
    Yes
    Angle
    :
    90°
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    100
    Cable Outlet
    :
    6.00 - 8.00 mm
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Ag (Silver)
    Mechanical Life
    :
    > 500
    Rated Impulse Voltage
    :
    6000 V
    Test Voltage
    :
    7300 V
    Overvoltage Category
    :
    III
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
    Standards
    :
    UL
