Out of stock
Franz Binder

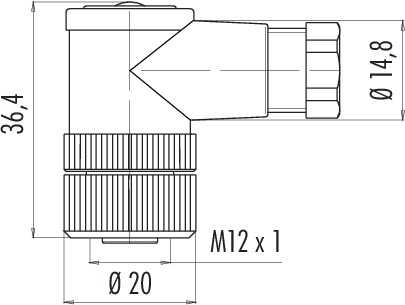

M12-A female angled connector, Contacts: 4, 4.0 - 6.0 mm, not shielded, screw clamp, IP67, UL

Product Code : 99 0430 20 04
Stok Durumu : 0
Birim : Adet
Franz Binder
413.49 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%30
100 - 9999
%47
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 99 0430 20 04

    M12, series 713, Automation technology - sensors and actuators

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    4
    Coding
    :
    A Coding
    Shell Size
    :
    M12
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    250 V
    Rated Current
    :
    4 A
    Termination Type
    :
    Screw
    Cross Section (mm²)
    :
    0.75
    Cross Section (Awg)
    :
    18
    Angled
    :
    Yes
    Angle
    :
    90°
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Cable Outlet
    :
    4.00 - 6.00 mm
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    CuSnZn (Optalloy)
    Housing Material
    :
    PA (Polyamide)
    Mechanical Life
    :
    > 50
    Rated Impulse Voltage
    :
    2500 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    > 10⁸ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 8 mΩ
    EMC Suitability
    :
    No
    Standards
    :
    UL
