TE Connectivity - Raychem

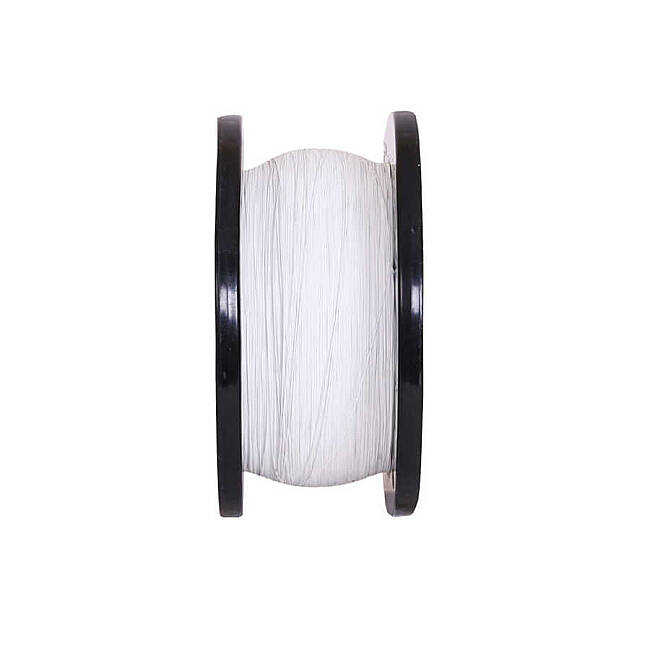

22 Awg White Mil-Spec Wire

Product Code : 44A0111-22-9
Stok Durumu : 0
Birim : Metre
TE Connectivity
17.44 TL + VAT
0 Yorum | Add Comment
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 44A0111-22-9

    The 22 Awg White wire which is produced by Raychem has in MIL-W-M81044 standards which can operate at temperatures between -65 and 150 degrees. The conductor coating is Sn (Tin) Coated Copper and the cable sheath coating is provided with Polyalkene & PVDF. It's operating voltage is 600 V.

    Features
    Series
    :
    Spec 44
    Rated Voltage
    :
    600 V
    Cross Section (Awg)
    :
    22
    Lower Limit Temperature (°C)
    :
    -65
    Upper Limit Temperature (°C)
    :
    150
    Cable Sheath Material
    :
    Polyalkene & PVDF
    Cable Sheath Color
    :
    White
    Standards
    :
    MIL-W-M81044
    Conductor Coating
    :
    Sn (Tin) Coated Copper
    Shield Structure
    :
    No
    Number of Cores
    :
    1
