Franz Binder

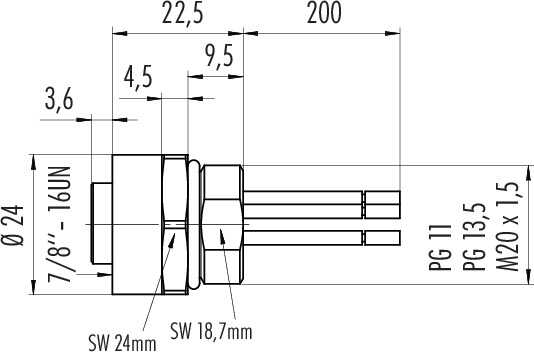

7/8" female panel mount connector, Contacts: 4+PE, not shielded, single wires, IP68, UL, PG11

Product Code : 09 2450 310 05
Stok Durumu : 0
Birim : Adet
Franz Binder
778.85 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%27
100 - 9999
%44
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 2450 310 05

    7/8", series 870, Automation technology - data transmission and power supply

    Features
    Connector Type
    :
    Receptacle
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP68
    Number of Poles
    :
    4 + PE
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    300 V
    Rated Current
    :
    6 A
    Cross Section (mm²)
    :
    0.75
    Cross Section (Awg)
    :
    18
    Angled
    :
    No
    Flange
    :
    No
    Mounting Side
    :
    Arkadan
    Lower Limit Temperature (°C)
    :
    -25
    Upper Limit Temperature (°C)
    :
    85
    Cable
    :
    Yes
    Contact Material
    :
    CuZn (brass)
    Contact Surface
    :
    Au (Gold)
    Mechanical Life
    :
    > 100
    Rated Impulse Voltage
    :
    4000 V
    Overvoltage Category
    :
    III
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 5 mΩ
    EMC Suitability
    :
    No
    Standards
    :
    UL
