Out of stock
Franz Binder

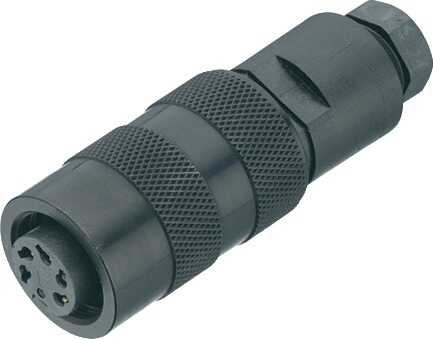

M16 IP67 female cable connector, Contacts: 14, 6.0 - 8.0 mm, shielding is not possible, solder, IP67

Product Code : 09 0452 70 14
Stok Durumu : 0
Birim : Adet
Franz Binder
1,230.75 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%29
100 - 9999
%45
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 0452 70 14

    M16, series 723, Miniature connectors

    Features
    Connector Type
    :
    Plug
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    14
    Shell Size
    :
    M16
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    60 V
    Rated Current
    :
    3 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    0.25
    Cross Section (Awg)
    :
    24
    Angled
    :
    No
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    95
    Cable Outlet
    :
    6.00 - 8.00 mm
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Au (Gold)
    Housing Material
    :
    PA (Polyamide)
    Mechanical Life
    :
    > 500
    Rated Impulse Voltage
    :
    500 V
    Test Voltage
    :
    550 V
    Overvoltage Category
    :
    I
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 3 mΩ
    EMC Suitability
    :
    No
