Out of stock
Franz Binder

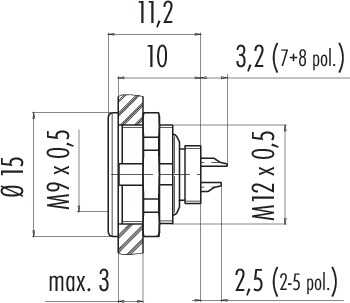

M9 IP67 female panel mount connector, Contacts: 5, shieldable, solder, IP67

Product Code : 09 0416 00 05
Stok Durumu : 0
Birim : Adet
Franz Binder
382.82 TL + VAT
0 Yorum | Add Comment
Buy wholesale for more discount!
Quantity
Discount
1 - 19
%0
20 - 99
%34
100 - 9999
%51
Alert when in stock
Hafta İçi Saat 15:00'a Kadar Verdiğiniz Siparişler Aynı Gün Kargoda!
Campaign
  • Features
  • Document
  • Payment Options
  • Comments (0)
  • Recommend

  • 09 0416 00 05

    M9, series 712, Subminiature connectors

    Features
    Connector Type
    :
    Receptacle
    Connector Lock
    :
    Screw
    Contact Type
    :
    Female
    Degree of Protection
    :
    IP67
    Number of Poles
    :
    5
    Shell Size
    :
    M9
    Contacts Supplied
    :
    Yes
    Rated Voltage
    :
    125 V
    Rated Current
    :
    3 A
    Termination Type
    :
    Solder
    Cross Section (mm²)
    :
    0.25
    Cross Section (Awg)
    :
    24
    Angled
    :
    No
    Flange
    :
    No
    Mounting Side
    :
    Arkadan
    Lower Limit Temperature (°C)
    :
    -40
    Upper Limit Temperature (°C)
    :
    85
    Contact Material
    :
    CuSn (bronze)
    Contact Surface
    :
    Au (Gold)
    Mechanical Life
    :
    > 500
    Rated Impulse Voltage
    :
    1500 V
    Test Voltage
    :
    1750 V
    Overvoltage Category
    :
    II
    Insulation Resistance
    :
    ≥ 10¹⁰ Ω
    Insulation Group
    :
    III
    Volume Resistance
    :
    ≤ 3 mΩ
    EMC Suitability
    :
    Yes
